MongoDB (Sharded Cluster)

Last modified on September 17, 2024

Overview

A datasource consists of a database resource and the credentials used to access it. This guide describes how to add a MongoDB (sharded cluster) database as a datasource in the StrongDM Admin UI.

Prerequisites

To add a datasource, make sure you have met the following prerequisites:

  • Properly configure an account for your database resource. If you choose to store credentials for the resource with StrongDM, have those credentials ready. When not using StrongDM, set up a Secret Store integration and be able to enter the location of the secrets required to access the resource.
  • The hostname or endpoint you enter for your resource must be accessible by at least one gateway or relay. To verify this, log in to the gateway or relay and use the nc -zv <YOUR_HOSTNAME> <YOUR_PORT> Netcat command. For example, use nc -zv testdb-01.fancy.org 5432. If your gateway server can connect to this hostname, you can proceed.

Add a Datasource

To add your new MongoDB database as a StrongDM datasource, use the following steps.

  1. Log in to the Admin UI.

  2. Go to Infrastructure > Datasources.

  3. Click Add datasource.

  4. Select MongoDB (sharded cluster) as the Datasource Type and set other configuration properties for your new database resource.

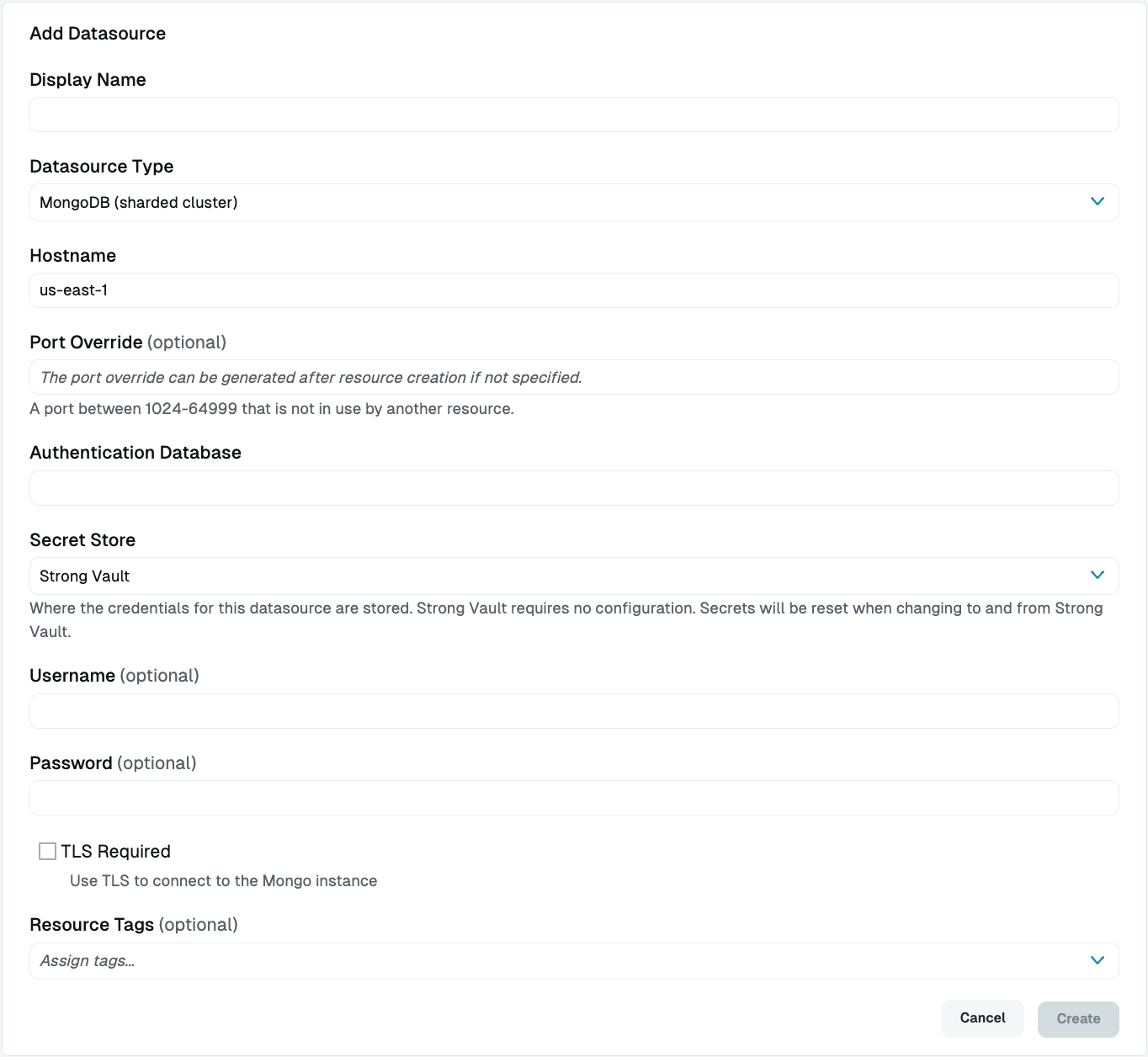

    Add MongoDB (Sharded Cluster) Datasource Dialog
    Add MongoDB (Sharded Cluster) Datasource Dialog
  5. Complete all required fields.

  6. Click Create to save the resource.

  7. Click the resource name to view status, diagnostic information, and setting details.

Resource properties

Configuration properties are visible when you add a datasource or when you click to view its settings. The following table describes the settings available for your MongoDB database.

PropertyRequirementDescription
Display NameRequiredMeaningful name to display the resource throughout StrongDM; exclude special characters like quotes (") or angle brackets (< or >)
Datasource TypeRequiredSelect MongoDB (sharded cluster).
HostnameRequiredHostname for your MongoDB database resource; must be accessible to a gateway or relay
Port OverrideRead onlyAutomatically generated with a value between 1024-59999 as long as that port is not used by another resource; preferred port can be modified later under Settings > Port Overrides
Authentication DatabaseRequiredEnter the name of the authentication database (that is, the database that MongoDB users authenticate against, not the database to which you are granting access. In this example, the authentication database is sdmdb, while the MongoDB default database is admin.
Secret StoreOptionalCredential store location; defaults to Strong Vault; learn more about Secret Store options
UsernameRequiredUsername to utilize when connecting to this datasource; displays when Secret Store integration is not configured for your organization or when StrongDM serves as the Secret Store type
PasswordRequiredPassword for the user connecting to this datasource; displays when Secret Store integration is not configured for your organization or when StrongDM serves as the Secret Store type
Username (path)RequiredPath to the secret in your Secret Store location (for example, path/to/credential?key=optionalKeyName where key argument is optional); required when using a non-StrongDM Secret Store type
Password (path)RequiredPath to the secret in your Secret Store location (for example, path/to/credential?key=optionalKeyName where key argument is optional); required when using a non-StrongDM Secret Store type
TLS RequiredOptionalIndicator to require StrongDM to use TLS to connect to the database
Resource TagsOptionalDatasource tags consisting of key-value pairs <KEY>=<VALUE> (for example, env=dev)

Secret Store options

By default, datasource credentials are stored in StrongDM. However, these credentials can also be saved in a secrets management tool.

Non-StrongDM options appear in the Secret Store dropdown if they are created under Network > Secret Stores. When you select another Secret Store type, its unique properties display. For more details, see Configure Secret Store Integrations.

Resource status

After a resource is created, the Admin UI displays that resource as unhealthy until the health checks run successfully. When the resource is ready, the Health icon indicates a positive, green status.

When the resource does not display a positive status, click the resource name to go to the Diagnostics tab and check for errors.

Client Connections

Due to the way MongoDB manages sharded clusters, to access a sharded instance, you will need to let MongoDB know that the connection is through a load balancer by setting the loadBalanced=true parameter in the connection string when connecting to the proxied instance in the shell.

mongosh "mongodb://127.0.0.1:10002/admin?loadBalanced=true"
